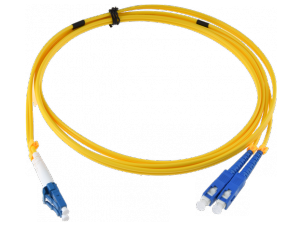

Patchcord SC/PC-LC/PC SM duplex G.657A 1m

Single-mode fiber optic patchcord (SM 9/125) duplex with SC / PC-LC / PC connector 1m long.

Technical Specifications:

Typesingle-mode
Type of fiber optic transmissionDuplex

Connector type

SC/PC-LC/PC
Fiber typeG657A

The length of the patchcord

1 m
Attenuation random plug-plug, maximum ILw-w =<0,3 dB
Random attenuation plug-plug, mean ILw-w ś =<0,2 dB

RL PC reflection

>50 dB
Strength of fiber>98,1 N

Strengthening element

aramid fibers / sludge fibers

Working temperature

from -40 to +85 ° C


Detailed information:

Single-mode fiber optic patchcord (SM 9/125) duplex with SC / PC-LC / PC interface. Made on G.657A fiber. Patchcord made in a 3mm screen cable. Made in accordance with the applicable standards in the Telcordia GR-326-CORE standard. Patchcord is made with high precision and has a very good price / quality ratio, repeatability of measurements guarantees long and reliable operation. G657A fiber has a reduced bending radius without an increase in attenuation. The limit diameter is fi = 10mm. This is a very important feature during the construction of the FTTx network, due to the large number of changes in the direction of the optical line and small-sized cabinets and distribution boxes, and continuous control of the power budget, and thus the loss of optical lines.

Application:
– LAN, MAN, WAN networks,
– WDM, FTTx systems – CATV solutions,
– Construction of the passive network,
– Nodal and distribution points,
– Automation solutions,
– Data transmission (audio, video)

Features:
– Repeatability of measurements,
– Work in a wide temperature range,
– Low attenuation,
– Very good value for money,
– Compliant with standards EN-50173-1, EIA / TIA 568, EN 50377,
– High quality,
